Masimo LiDCO®

Masimo LiDCO is powered by the PulseCO® algorithm, which analyzes beat-to-beat physiological data to provide advanced hemodynamic monitoring that supports informed decision-making in high-acuity care areas such as the Operating Room.

  • Uses the patient’s existing arterial line and blood pressure transducer to monitor numerous hemodynamic parameters
  • Converts beat-to-beat blood pressure into its constituent parts (flow and resistance), scaled to each patient’s age, height, and weight
  • Reliable even on patients receiving vasoactive drugs1

Parameters

Masimo LiDCO’s beat-to-beat parameters offers immediate feedback about a patient’s fluid and hemodynamic status.

The PulseCO algorithm calculates a variety of parameters, including:

  • Stroke Volume (SV): The amount of blood pumped by the left ventricle of the heart in one contraction
  • Cardiac Output (CO): The amount of blood the heart pumps through the circulatory system in a minute, calculated by multiplying the stroke volume by the patient’s heart rate
  • Systemic Vascular Resistance (SVR):The resistance to flow, calculated as the quotient of pressure and cardiac output
  • Oxygen Delivery (DO2): The amount of oxygen delivered to the tissues, calculated as the product of cardiac output and oxygen concentration
  • Stroke Volume Variation (SVV): The variation in stroke volume across at least one respiratory cycle; a dynamic variable that can predict fluid responsiveness in mechanically ventilated patients
  • Pulse Pressure Variation (PPV): The variation in arterial pulse pressure across at least one respiratory cycle; like SVV, a dynamic variable that can predict fluid responsiveness in mechanically ventilated patients

Clinical Evidence

Reductions in Postoperative Complications and Costs

  • In a randomized, controlled trial of 743 patients undergoing major abdominal surgery, researchers found hemodynamic optimization with LiDCO® led to a 15.7% reduction in postoperative complication rates2 and, as a result, patients monitored with LiDCO were on average $530 less expensive to treat than control patients who were not monitored.3

Cost Savings With LiDCO

Average Hospital Cost per Patient($)

Cost Savings With LiDCO



Without LiDCO

With LiDCO

Reductions in 30-Day and 180-Day Mortality

  • In a study comparing the outcomes of 600 emergency laparotomy patients, researchers found that, following the implementation of a program including LiDCO technology, there was a significant decrease in mortality at 30 days (from 21.8% to 15.5%) and 180 days (from 29.5% to 22.2%).4

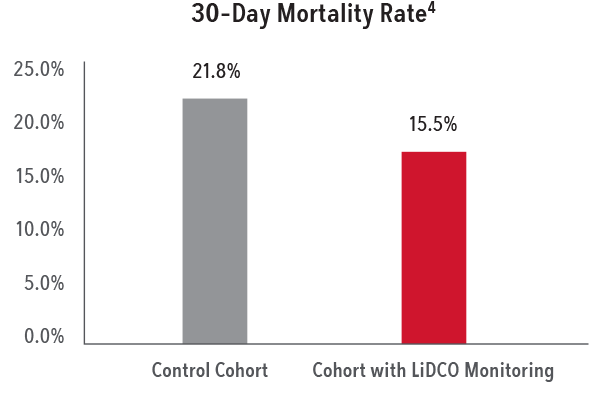

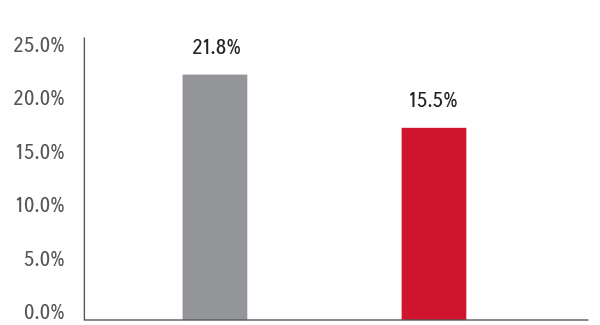

30-Day Mortality Rate4

30-Day Mortality Rate



Control Cohort

Cohort With LiDCO Monitoring

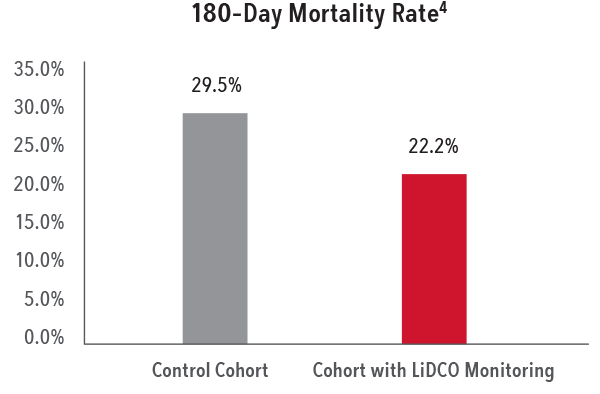

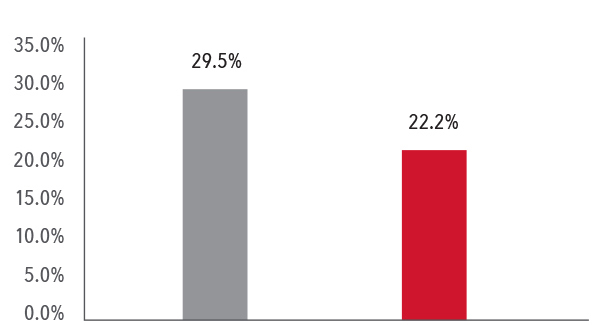

180-Day Mortality Rate4

180-Day Mortality Rate



Control Cohort

Cohort With LiDCO Monitoring

Easy Setup and Operation

Masimo LiDCO is designed for efficient setup and simple operation, with an intuitive, easy-to-interpret display:

  • Plug-and-play operation using the invasive blood pressure output port on the third-party patient monitor
  • Monitor using the existing blood pressure transducer, eliminating the need for an additional disposable

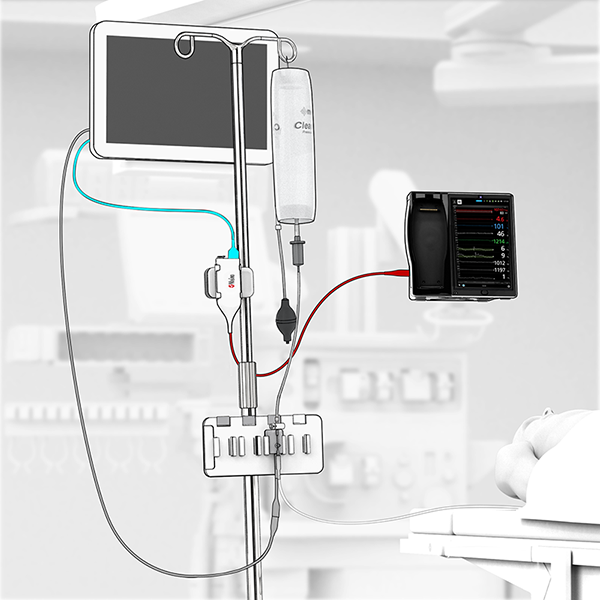

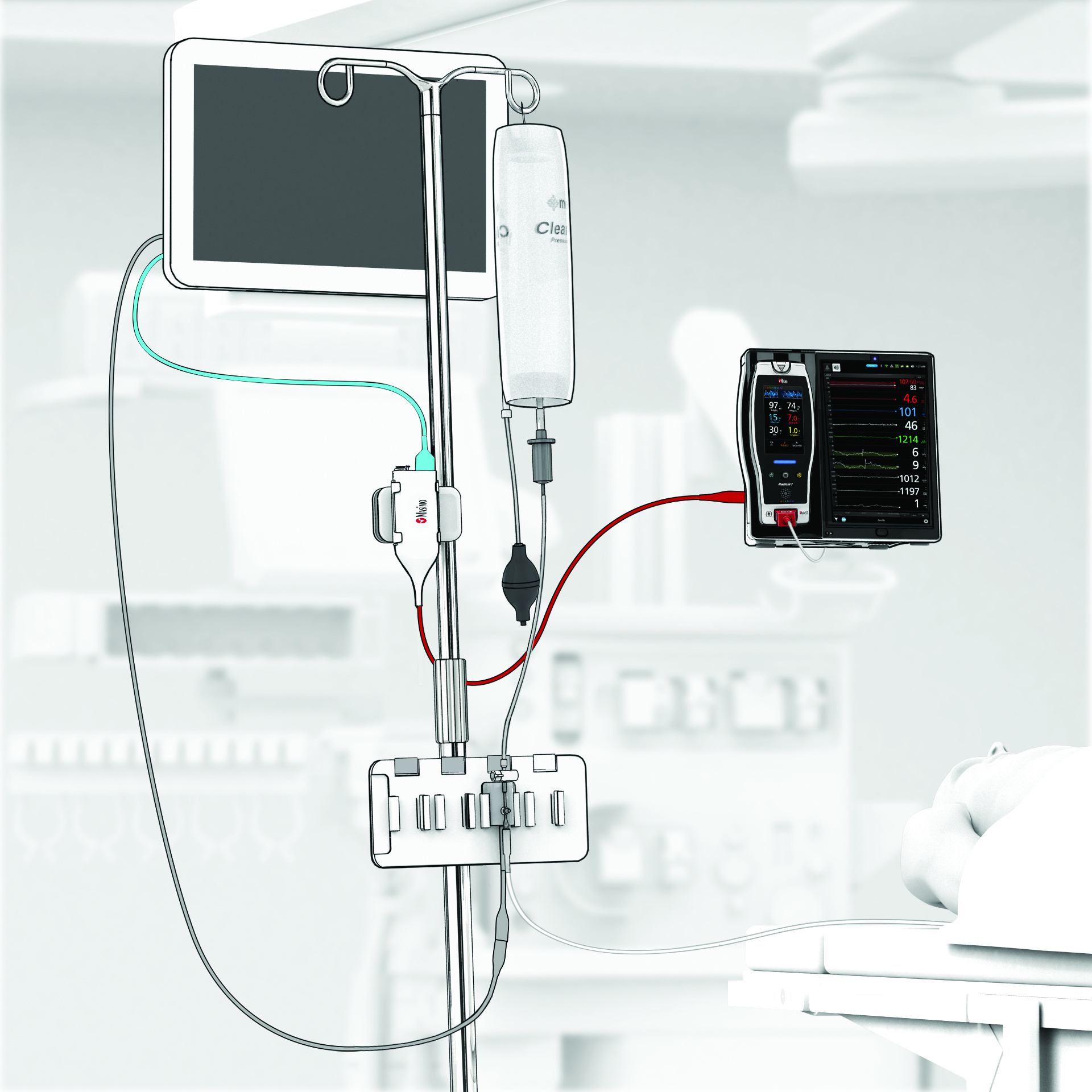

OPTION 1: Analog Cable Setup

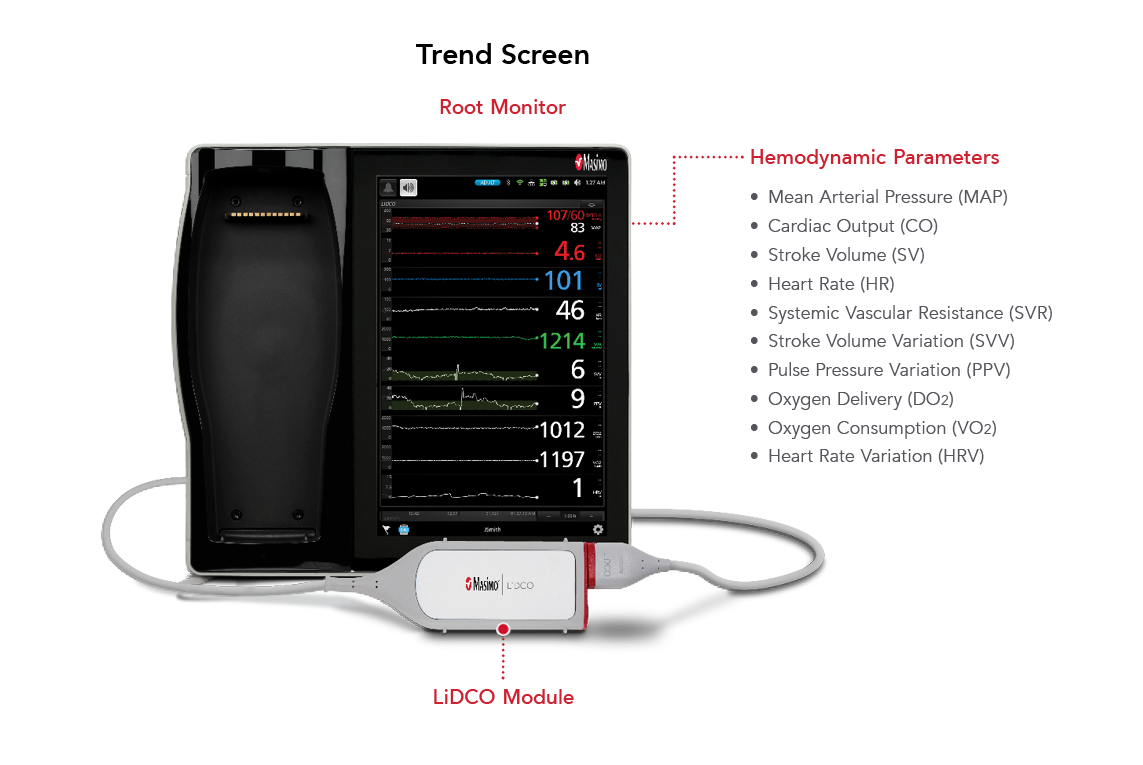

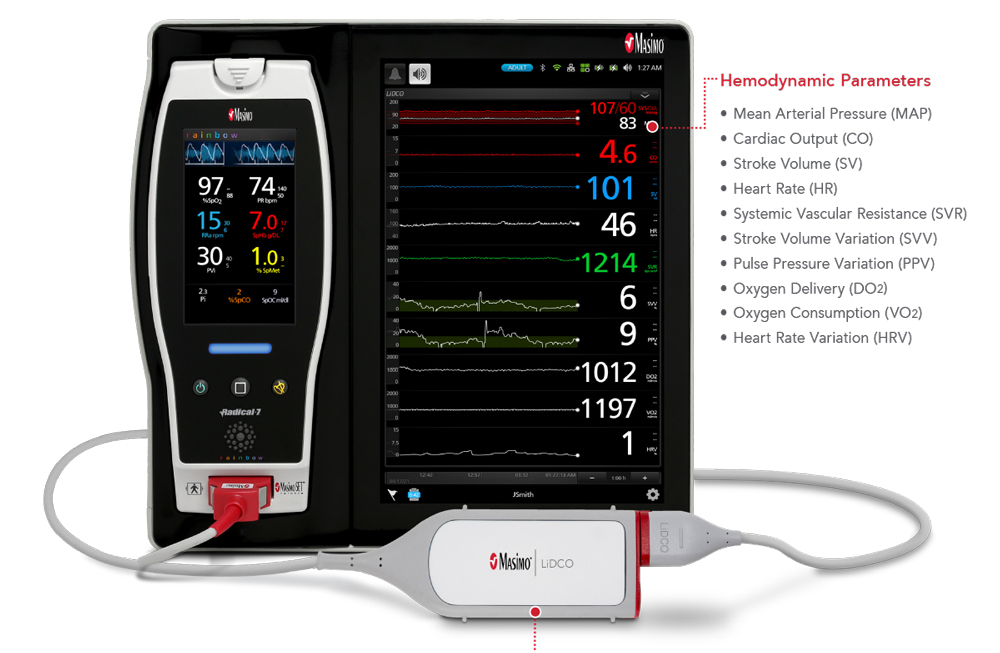

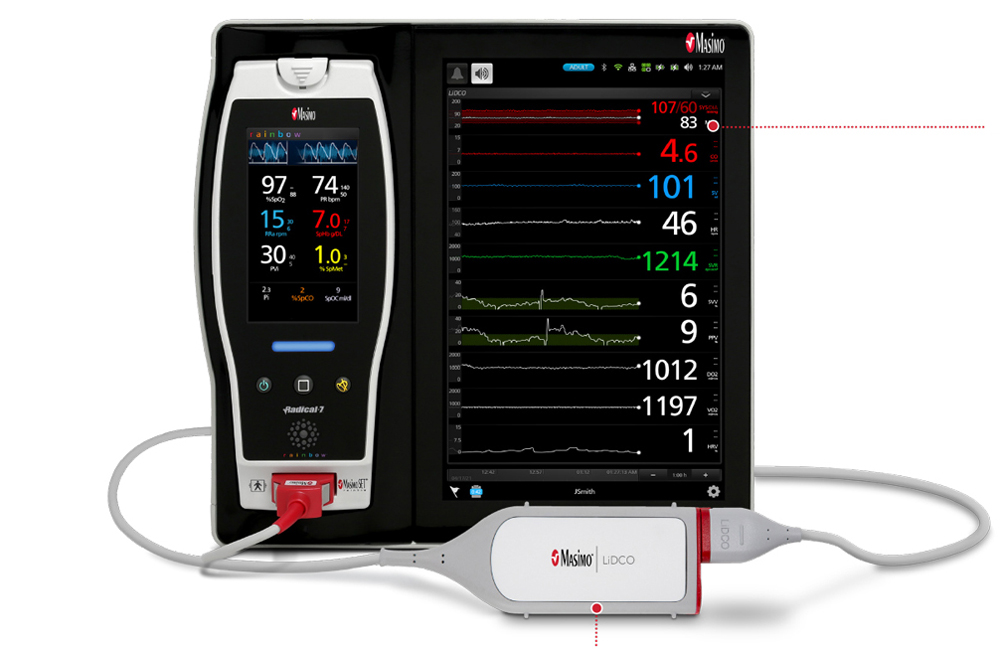

Key Features of Masimo LiDCO on the Root Display

Root Monitor (Trend Screen)

xs

Masimo LiDCO Module

Automating Clinical Protocols

Step-by-Step Guided Protocols

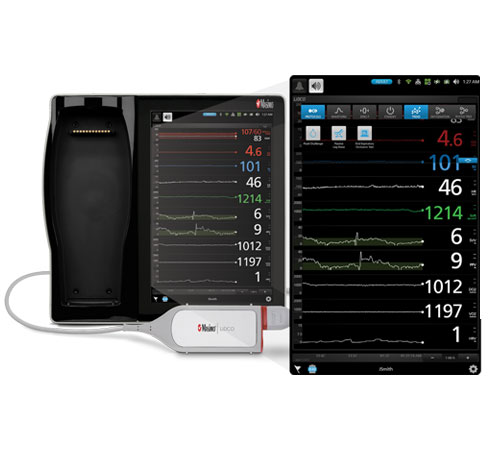

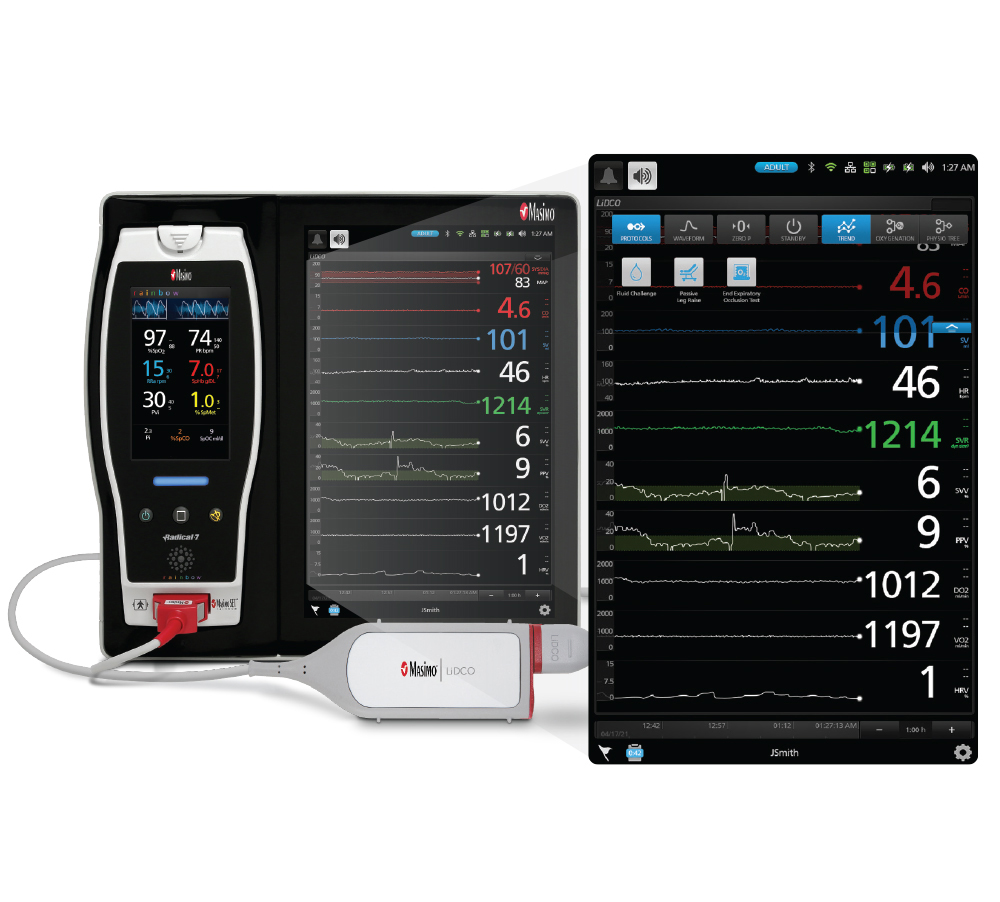

Guided Protocol Menu

Masimo LiDCO automates established clinical protocols, such as a Fluid Challenge Guided Protocol, a Passive Leg Raise Guided Protocol and an End- Expiratory Occlusion Test Guided Protocol.

Example: Guided Protocol Menu

Fluid Challenge Guided Protocol - 1

Before the protocol begins, the initializing screen indicates that Masimo LiDCO is getting ready to provide data.

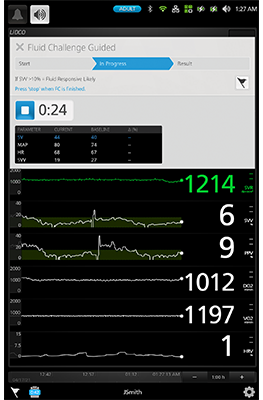

Fluid Challenge Guided Protocol - 2

While the guided protocol is in progress, current and baseline data are displayed, along with a timer to measure progression of the protocol.

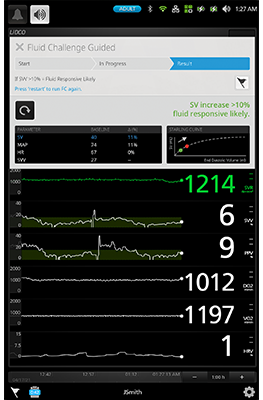

Fluid Challenge Guided Protocol - 3

Upon the completion of the protocol, Masimo LiDCO calculates the change from baseline to completion, and provides a result. The Result screen displays the Starling Curve along with the results message.

View LiDCO Clinical Evidence
Discover LiDCO Cardiac Output Technology

RESOURCES

Need more information? Below are key resources about Masimo LiDCO®

Schedule an Evaluation

See how Masimo LiDCO can make a difference in your healthcare organization. Please fill out the following information and a Masimo representative will be in touch with you.

References

  1. Hadian, M et al. Critical Care. 2010 Dec;14(6):1-0.

  2. Pearse R et al. JAMA 2014; 311(21):2181-90.

  3. Sadique et al. Perioperative Medicine (2015) 4:13

  4. Tengberg LT et al. Br J Surg 2017; 104:463-471.
